Wire bonding service
What is W ire B onding?
Wire Bonding and called bonding or bonded, is a chip and the inner leads via metal fine wires ( copper, silver, gold , aluminum) are connected together , to achieve the electric connection process ;
The bonding process on Classification: thermocompression bonding , thermocompression ultrasonic bonding , ultrasonic bonding.
Introduction of welding principle of thermosonic bonding
Of metal fine wire and the bonding point while heated by applying ultrasonic waves , the contact surface will produce the plastic deformation and destruction of the oxide interface layer, so that the activity of , by the contact surfaces two metal interdiffusion between the completion of the connection

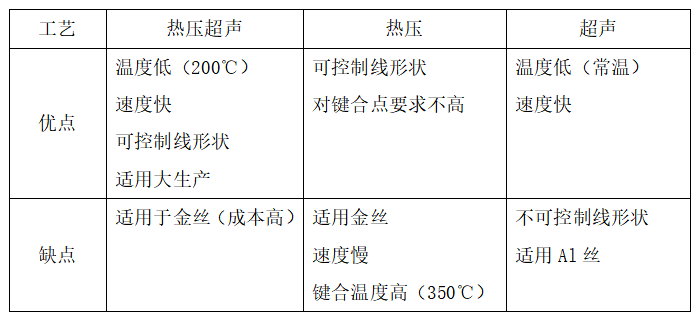

Bonding process of comparison

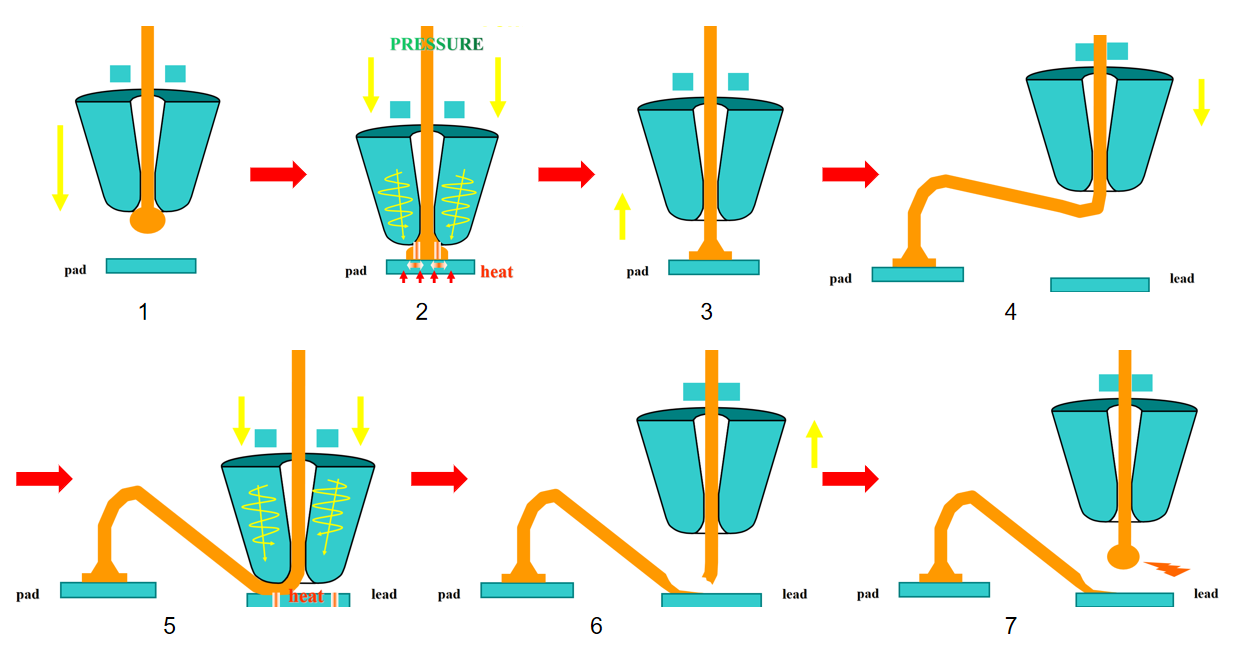

Hot pressing the ultrasonic bonding process described (in gold as Example )

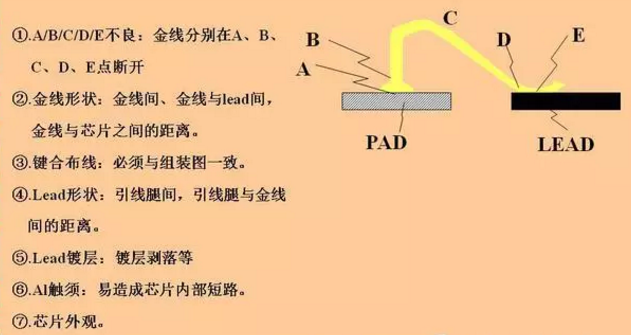

Introduction of the main bad items of bonding (take gold wire as an example)
